Cov ntaub ntawv yooj yim
|
Khoom siv |
Carbon Steel, Stainless Hlau, Tooj, Aluminium |
Cov ntsiab lus muag khoom tseem ceeb |
Eco- Tus phooj ywg, Tus Nqi Kho Mob Tsawg, Kev Pabcuam Ntev |
|
Qhov hluav taws xob |
220 V, 380 V |
Kub Exchanger Hom |
Tube Thaum tshav kub kub Exchanger |
|
Ua haujlwm kub siab tshaj plaws |
500℃(932℃F) |
Flow Capacity |
Customized |
|
Kua Compatibility |
Roj, dej, chav, tub yees, roj |
Ua haujlwm kub ntau |
100 ~ 500℃(212 ~ 932℃F) |
|
Cov ntsiab lus tseem ceeb |
cev fin |
Warranty |
1 Xyoo |
|
Machinery test report |
Muab |
Cov yeeb yaj kiab tawm - tshuaj xyuas |
Muab |
|
Qhov chaw keeb kwm |
Guangdong, Suav teb |
Qhov hnyav (KG) |
200 |
|
Hom lub npe |
Hylita |
Kua Flow Rate |
1.39~10 L/s |
|
Kev ntsuas siab tshaj plaws |
Hloov pauv |
Dimension (l * w * h) |
Customized Ua |
|
Daim ntawv thov |
Cua cua sov, chav cua sov, cua sov thiab ziab |
Thaum tshav kub kub exchanger hom |
Finned Tube rhaub Exchanger |
|
Khoom npe |
Khib kub rov qab |
Tube & Fin khoom |
Copper, CuNi, Stainless hlau, Aluminium, carbon hlau, Titanium |
|
Cov khoom siv ncej |
Stainless hlau, GI phaj, Aluminium phaj |
Feature |
Kev siv hluav taws xob siab siab - tus nqi ua haujlwm qis |
|
Fin hom |
Pav ca, corrugated, louvered, Smooth tube |
Fin nto |
Epoxy (kub), Xiav (hydrophilic), hmoov xim, liab qab |
|
Ntim |
Ntoo Case |
Ua kua hauv lub raj |
Dej, ammonia, glycol, tub yees |
|
Muag Khoom |
Ib yam khoom |
Ib pob loj |
77 x 112 x 138 cm |
|
Ib qho hnyav tag nrho |
238,000 Kg |

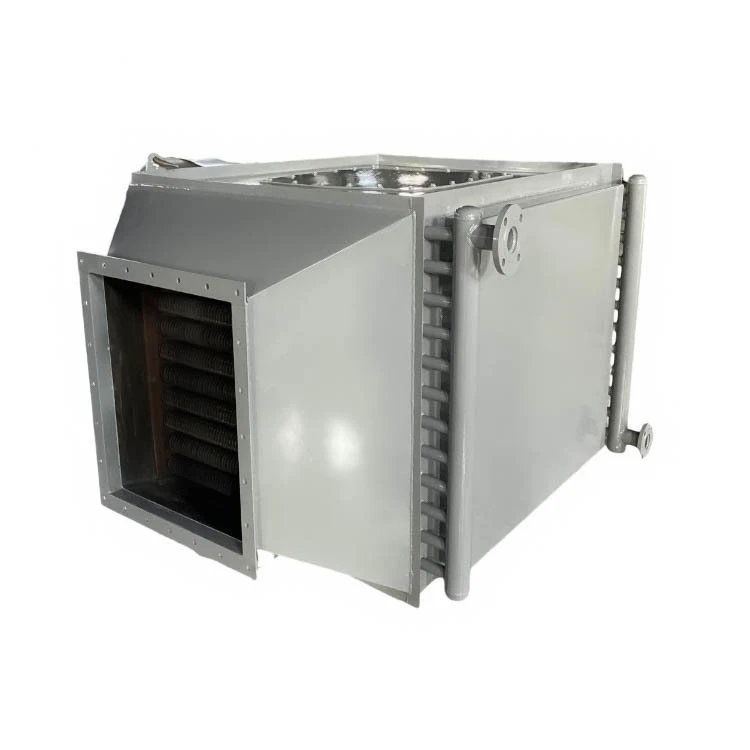

Khoom Description
Ua kom muaj zog txuag hluav taws xob: Cov Khoom Siv Hluav Taws Xob Cov Hluav Taws Xob Zoo Tshaj Plaws
Peb lub kaw lus siv H-fin lossis Kauv fin raj ua los ntawm corrosion-resistant ND steel lossis Stainless hlau. Qhov kev tsim no ua rau thaj tsam ntawm qhov chaw tshav kub hloov pauv thaum tiv thaiv cov hmoov tshauv. Nws yog kev cai-engineered los tiv taus kub thiab acidic flue gases nyob rau hauv hnyav industrial cheeb tsam.
Core Zoo
Txuag roj:Rov qab pov tseg cov cua sov kom txo cov boiler roj siv txog li 10-15%.
ROI ceev:Kev ua haujlwm siab ua kom cov peev nyiaj rov qab feem ntau hauv 1 xyoos.
Anti- Hnav:H-fin tsim kom txo tau cov pa roj flue, ua rau lub neej ntev.
Corrosion Safe:ND Steel (09CrCuSb) tiv taus sulfuric acid dew point corrosion.
Tsawg tshauv:Optimized fin spacing tiv thaiv cov tshauv clogging thiab tswj kev ntws.
Hloov siab:Finned tubes muab 10x nto thaj tsam vs cov hlab tiaj rau cua txias.
Custom Fit:Txiav qhov ntev kom seamlessly retrofit boiler flues uas twb muaj lawm.
Leak pov thawj:Siab - zaus vuam ua kom 100% fusion tus nqi ntawm fins/tubes.
Siab Npaj:Tsim thiab sim los tiv thaiv kev ua haujlwm siab.
Eco tus phooj ywg:Txo cov pa cua kub kom txo tau qhov cuam tshuam ib puag ncig.
Technical Specifications
● Tube & Fin Khoom: Tooj, CuNi, Stainless hlau, Aluminium, Kub dip hlau, Titanium
● Fin Technology: Siab -Vuam zaus / Laser Vuam
● Thermal Efficiency: tshaj 95%:
● Thaum tshav kub kub hloov chaw: 5–500 m² (customizable)
● Max Siab: 0.5–4.0 MPa (72–580 psi)
● Airflow Peev Xwm: 500–50,000 m³ / h
● Max Ua Haujlwm Kub: Txog 800℃(Customizable)
● Kev poob siab (Air) 50–300 Pa (0.2–1.2 inH₂O)
● Tus Qauv Tsim: ASME / GB / ISO 9001
● Thaum tshav kub kub nruab nrab: Saturated Steam, Thermal Roj, Dej Kub
Daim ntawv thov
● Cov Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob
● Muaj Chav Boilers
● Natural Gas Heating Systems
● Textile Dyeing Factories
● Petrochemical Refineries
● Biomass Energy Plants
● Cov Khoom Siv Hluav Taws Xob Hluav Taws Xob
● Pov tseg Thaum tshav kub kub rov qab qhov cua
Cov yam ntxwv tseem ceeb
2. Siab - zaus kauv fin welding rau siab tshaj plaws thermal contact.
3. Modular tsim enables yooj yim installation thiab txij nkawm.
4. Nruj X-Ray flaw detection ntawm weld pob qij txha guarantees kev nyab xeeb.
5.Customized thermal xam kev them nyiaj yug raws li koj cov ntaub ntawv boiler.
Vim Li Cas Xaiv Peb
Kev Lag Luam Kev Pabcuam & Cov Khoom Muag
Peb muab cov khoom siv dav dav ntawm cov khoom siv hluav taws xob ua haujlwm rau kev lag luam, khoom noj khoom haus & dej haus, HVAC, marine, cua tuav thiab cua txias, petrochemical, hluav taws xob tsim, thiab tub yees sectors.
1) Peb muab kev txhawb nqa tag nrho los ntawm cov khoom tsim rau kev tsim khoom, ua haujlwm nrog koj cov kev qhia tshwj xeeb lossis kev sib koom tes ntawm kev tsim qauv.
2) Peb cov khoom tau raug xa tawm mus rau ntau lub tebchaws thoob ntiaj teb, suav nrog Israel, Tebchaws Asmeskas, Lub Tebchaws Yelemees, thiab Canada.
3) Ua kom cov lus teb sai rau koj cov lus nug, feem ntau teb hauv 24 teev. Rau qhov xwm txheej ceev, thov hu rau peb ncaj qha.
4) Peb tau cog lus tias yuav xa cov kev pabcuam zoo, txhim khu kev qha zoo, thiab tuav lub koob npe nrov.
5) OEM & ODM, Peb muaj cov khoom siv hluav taws xob hloov hluav taws xob tsim software uas Guentner thiab Cabero siv, Peb muab cov kws txiav txim plaub - ua cua sov thiab cua txias.
Engineering Tsim
Peb tsuas yog siv HTRI thiab EDR tsim software los ntawm ib lub npe nrov European software muab kev pabcuam.
Nrog 18 xyoo ntawm kev sib koom tes, peb tau ua tiav tsim, tsim, thiab xa tawm cov khoom siv hluav taws xob rau ntau tshaj 50 lub teb chaws thoob ntiaj teb.
Cov neeg siv khoom tawm tswv yim tsis tu ncua lees paub tias qhov ua tau txias txias ua tau zoo nrog cov qauv tsim qauv tsim nyog.
Peb tuaj yeem muab cov duab ntxaws ntxaws tom qab koj xaj. Peb kuj tuaj yeem muab kev pabcuam kev cai.
|
Peb Boiler Economizer Nta |
|
|
Kev ua tau zoo Specifications |
● Thaum tshav kub kub hloov chaw: 5–500 m² (customizable) ● Max Steam Siab: 0.5–4.0 MPa (72–580 psi) ● Chav Kub: 100–500℃(212–932℃F) ● Airflow Peev Xwm: 500–50,000 m³ / h ● Thermal Efficiency: tshaj 95% ● Kev poob siab (Air): 50–300 Pa |
|
Thaum tshav kub kub daim hlau / Tube |
● Khoom siv:: Copper, CuNi, Stainless hlau, Aluminium, carbon hlau, Titanium (customizable) ● Zoo tshaj plaws rau: Corrosive/High-Temp Chav |
|
Airside Fins |
● Khoom siv:: Aluminium, Corten Steel (customizable) ● Qhov Zoo Tshaj Plaws Rau: Dusty/Acidic Airflows |
|
Gaskets / Seals |
● Khoom siv: EPDM, PTFE, Graphite ● Qhov zoo tshaj plaws rau: Kev Tiv Thaiv Kev Tiv Thaiv Kev Tiv Thaiv |
|
Ncej/Casing |
● Khoom siv: Carbon Steel (Painted), SS304 ● Qhov Zoo Tshaj Plaws Rau: Cov Txheej Txheem Zoo |
|
Kev sim |
Thaum tshav kub kub exchangers raug muab ntxuav thiab sim ntawm lub siab ntawm 30 bars |
|
Customization Options |
● Explosion-Proof Design (ATEX/IECEx certified) ● Tus kheej -Tshuaj Mechanisms (Rau cov ntawv thov huab cua plua plav) ● Hybrid MVR (Mechanical Vapor Recompression) Kev koom ua ke |
Cov neeg siv khoom Case Photos
Daim ntawv thov: Marine Diesel Exhaust Thaum tshav kub kub rov qab
Khoom siv: Tube - Stainless hlau 304; Fin- Txhuas (nrog hydrophilic txheej) Lub Zog: 230V / 1P / 50Hz
Daim ntawv thov: Kub Blast Qhov cub Flue Gas Thaum tshav kub kub rov qab
Khoom siv: Tube & Fin - Corten Steel (ND Steel) Lub Zog: 415V / 3P / 50Hz
Daim Ntawv Thov: Tshuaj Txheej Txheem Roj Txias & Chav Tsim
Khoom siv: Tube - Stainless Hlau 316L; Fin- 316L Lub Zog: 400V / 3P / 50Hz
Daim Ntawv Thov: Textile Tenter Ncej Tshem Tawm Thaum Tshav Kub Rov Qab
Khoom siv: Tube - Carbon Steel (galvanized); Fin- Txhuas Lub Zog: 400V / 3P / 50Hz
Daim ntawv thov: Food Sterilization Flash Steam Recovery
Khoom siv: Tube- Tooj; Fin- Copper Supply Lub Zog: 480V / 3P / 60Hz
Daim Ntawv Thov: Cement Kiln Exit Gas Heat Recovery
Khoom siv: Tube - Carbon Steel; Fin- Carbon Steel (Aluminized) Lub Zog: 380V / 3P / 50Hz
Daim ntawv thov: Sintering rauv Exhaust Chav rov qab
Khoom siv: Tube- Alloy Steel (15CrMo); Fin- Stainless hlau 321 Lub Zog: 380V / 3P / 60Hz
Daim ntawv thov: Ntawv Tshuab Condensate Cascade Thaum tshav kub kub rov qab
Khoom siv: Plhaub & Tube Thaum tshav kub kub Exchanger - Stainless hlau 304 Supply Power: 380V / 3P / 50Hz
Daim Ntawv Thov: Gas Boiler Flue Gas Condensing Heat Recovery
Khoom siv: Tube - Stainless Hlau 316L; Fin- Aluminium (nrog epoxy txheej) Kev Siv Lub Zog: 400V / 3P / 50Hz
Cov lus teb rau cov neeg siv khoom
Packing & Delivery
Standard ntim yog ntoo crates.
Rau kev xa tawm mus rau cov teb chaws Europe, cov ntoo crates raug kho fumigation.
Yog tias qhov chaw ntim khoom muaj tsawg, peb tuaj yeem hloov mus rau PE zaj duab xis ntim lossis haum rau ntim tshwj xeeb thov los ntawm cov neeg siv khoom.
Peb Lub Chaw Tsim Khoom
vim li cas xaiv peb cov khoom
Shenzhen Hylita Thaum tshav kub kub Exchanger Co., Ltd.
Peb lub tsev hauv paus yog nyob rau hauv Shenzhen, nrog cov chaw ua haujlwm hauv Guangzhou, Tangshan, thiab Wuhan.
Peb muab cov khoom siv dav dav ntawm cov khoom siv hluav taws xob ua haujlwm rau kev lag luam, khoom noj khoom haus & dej haus, HVAC, marine, cua tuav thiab cua txias, petrochemical, hluav taws xob tsim, thiab tub yees sectors.
Thaum tshav kub kub rov qab units (Boiler Economizers) muaj nyob rau hauv ob qho tib si ncaj qha - hloov cov qauv (100% sib xws nrog OEM specifications) thiab tag nrho customized configurations engineered kom tau raws li cov kev thov tshwj xeeb.
FAQ
1.Order Security & Online Transactions
Q: Peb puas tuaj yeem xaj ntawm Alibaba Trade Assurance rau kev nyab xeeb?
A: Yog, peb txhawb nws heev! Trade Assurance ruaj koj cov nyiaj them 100%. Ua ke nrog peb 10-xyoo kev tsim keeb kwm, koj tuaj yeem tso koj thawj qhov kev txiav txim nrog tag nrho kev ntseeg siab.
2. Kev Tswj Xyuas Zoo
Q: Koj ua li cas kom ntseeg tau qhov zoo ua ntej ua zaub mov xa tuaj?
A: Peb lub koob npe nrov yog tsim los ntawm 4 tus ncej zoo
✅ Kev Paub: Cov chaw tsim khoom tshwj xeeb txij li xyoo 2015 (10+ Xyoo).
✅ Daim ntawv pov thawj: ISO 9001: 2015, CE, ROHS
✅ Kev lees paub: 100% kev ntsuas siab ntawm txhua chav ua ntej xa khoom
✅ Kev ntseeg thoob ntiaj teb: Ua tiav kev pabcuam cov neeg siv khoom hauv ntau dua 50+ lub tebchaws.
3. Tsim & xam
Q: Tsis muaj duab? Koj puas tuaj yeem tsim rau kuv?
A: Yog! Peb siv HTRI software kom meej qhov loj me. Tsuas yog qhia koj cov ntaub ntawv kev khiav hauj lwm (Temp/Flow), thiab peb yuav muab tus qauv tsim rau koj qhov kev pom zoo.
4. Yam tsawg kawg nkaus Order Quantity (MOQ)
Q: MOQ yog dab tsi? Kuv puas tuaj yeem tso qhov kev txiav txim me me?
A: Kev txiav txim me me kuj tau txais tos hauv peb lub tuam txhab.
5. Kev Pabcuam Warranty
Q: Ntev npaum li cas yog lub warranty?
A: Peb muab cov kev xaiv hloov pauv hloov tau raws li koj xav tau:
✅ Txheem: 12-Hloov rau txhua qhov kev txiav txim.
✅ Ncua sijhawm: Txog 24-Hloov rau kev tsim nyog tau txais kev txiav txim (paub nrog peb pab neeg).
6. Kev kho kom haum
Q: Koj puas txhawb OEM / ODM thiab kev cai tsim khoom?
A: Yog, tag nrho customization muaj. Peb txhawb cov ntaub ntawv kev cai (Copper, SS304/316, Cu-Ni) thiab muab Laser Marking & Nameplates los ua kom koj lub logo zoo kawg nkaus.
7. Kev cog lus rau kev pabcuam
Q: Koj yuav ua li cas kom kuv hloov kho ntawm kuv qhov kev txiav txim?
A: Peb xyuas kom meej 100% Txheej Txheem Transparency
✅ Kev lees paub ob npaug: Txhua qhov kev kuaj xyuas ua ntej pib tsim khoom ..
✅ Visual Updates: Peb xa cov duab / yeeb yaj kiab ntawm kev tsim khoom.
✅ Cov ntaub ntawv tshuaj xyuas: Cov ntaub ntawv Draft (B / L, Invoice) xa tuaj rau koj qhov kev pom zoo ua ntej tshaj tawm zaum kawg kom tsis txhob yuam kev.
8. Cov khoom tseem ceeb
Q: Koj cov khoom tseem ceeb yog dab tsi?
A: Peb tsuas yog tsim cov cua kub exchangers, deg coolers, evaporator coils, condenser coil, plhaub thiab raj cua sov exchangers, phaj kub exchangers thiab lwm yam khoom siv tshav kub exchangers thiab tag nrho cov hom ntawm finned raj, tshav kub exchangers, thiab lwm yam.
